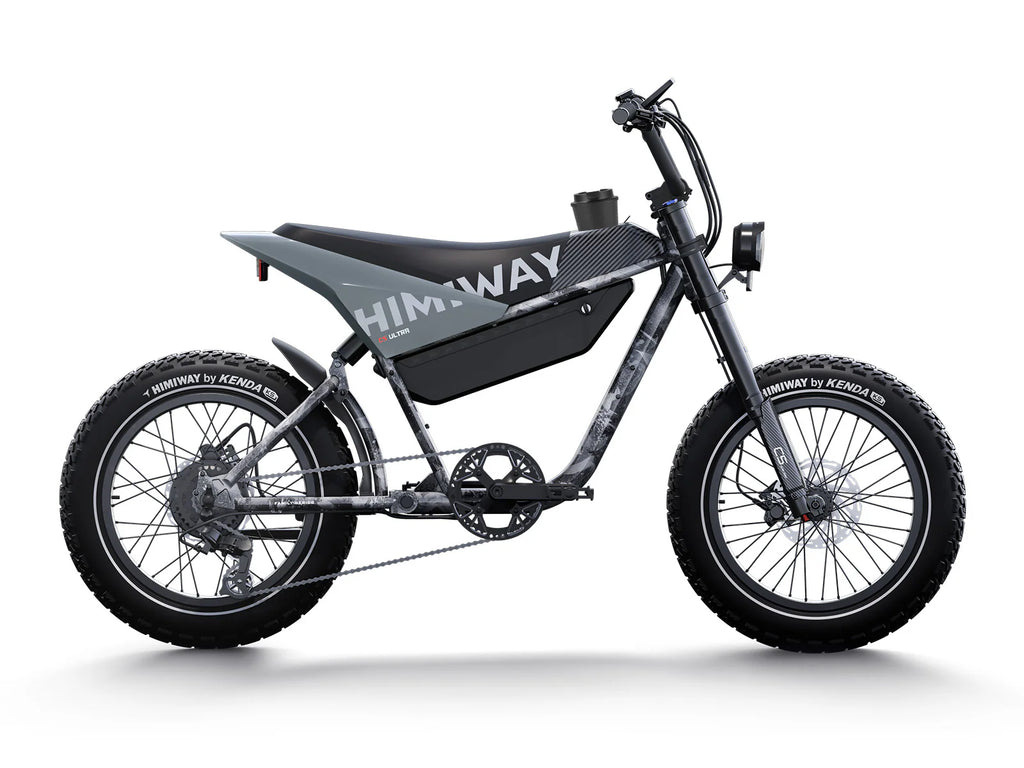

Himiway C5 Ultra Electric Dirt Bike Style E-Bike
POWERFUL MOPED E-BIKE WITH FULL-SUSPENSION, EXCELLENT OFF-ROAD PERFORMANCE AND ON-ROAD MANNERS
Limitless thrills await you onboard the Himiway C5! Experience the freedom and fun of dirt biking with the quietness, cleanliness and simplicity of an e-bike. You'll conquer off-road trails like never before, and can even ride back home at the end of the day, as this is after all, an e-bike! A powerful 750W motor with 86Nm torque provides blistering acceleration, and its class-leading Samsung / LG 20Ah lithium battery will put your endurance to the test.
The Ultra version features full-suspension, with a 140 mm inverted dual-crown fork, carbon fibre style fork guards and an adjustable rear air shock. Further contributing to the excellent ride quality and control, is a torque sensor that precisely delivers the power you need, when you need it. And when the fun must come to a halt, strong Tektro hydraulic disc brakes complement this incredible package. With low maintenance costs, high performance and super good looks, the Himiway C5 Ultra is your ticket to a whole new world of electric dirt biking adventures!
🇺🇸🍁 Free shipping in the US and Canada
😃 House of Bikes Exclusive: Assembly and delivery!
🚚 Available in Ottawa, Montreal and Toronto areas
No License, No Insurance, No Registration Requirements
DRIVETRAIN
• 750W rear hub motor
• 86 Nm torque
• Shimano 7-speed drivetrain
• Thumb throttle
• Torque sensor
BATTERY & RANGE
• 48V/20Ah (960Wh) removable battery
• Samsung / LG cells
• UL Safety certified
• Up to 130 km (80 mi) range
TOP SPEED
• Class 2: 32 km/h (20 mph)
• Unlockable for off-road use
• Selectable via display
WARRANTY
• 2 Years all-inclusive
HIGHLIGHTS
• Unique moped design with full suspension
• Dual-crown, inverted fork, 140 mm travel & adjustable rebound
• Adjustable rear air shock, 47 mm travel
• Powerful 750W motor and large 20Ah battery capacity
• Torque sensor for smooth, precise power delivery
• Carbon fibre accented cup holder & fork guards
• 20" x 4.0" fat tires for off-road traction & on-road comfort
• Hydraulic disc brakes with 180 mm rotors
• Shimano 7-speed drivetrain
• Retro style LED headlight
• LED taillight with brake light
CHECK IT OUT
HIMIWAY C5 ULTRA VS. HIMIWAY C5 SPORT
Both models feature the same powerful 750W motor and 20 Ah battery. Below is a summary of the key differences between the two models:
| C5 Ultra (this one) | C5 Sport |
| Torque sensor | Cadence sensor |
| Adjustable, dual-crown, inverted fork (140 mm) |
Dual-crown, rigid fork |
| Adjustable rear air shock suspension |
Coil spring rear suspension |
| Hydraulic disc brakes | Mechanical disc brakes |
| Retro moto LED headlight | - |
| Carbon fiber style fork guards | - |
| 88 lbs | 75 lbs |
PART OF YOUR LIFESTYLE
FEATURE HIGHLIGHTS
Full-suspension system: Inverted front fork, 140mm travel, adjustable rebound and rear air shock suspension with 47mm travel.
Illuminated battery arrows: a gentle pulse creates a stylish accent and improves night-time visibility.
Dirt bike handlebar: access to throttle, pedal assist levels, shifter and brakes at the tip of your fingers.
Cupholder: featuring a beautiful carbon fibre style frame.
Tektro hydraulic disc brakes: strong stopping power from 180 mm front & rear rotors.
EXA A5-RE rear shock: adjustable air shock, customizable to the rider's weight.
LED headlight: powerful, retro and unique headlamp designed by Himiway.
Himiway by Kenda: 20" x 4.0" fat tires for excellent off-road traction and on-road comfort.SPECIFICATIONS & COMPONENTS
| Frame | 6061 Aluminum frame |
| Headset | Neco H114 28.6*44*30 |
| Fork | KKE R150S coil spring fork compression | Rebound adjustable 140mm travel 15*150mm axle |
| Shock | EXA A5-RE 180*47mm |
| Front wheel | "Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 171mm/173mm | Hub: MB016F-92-T 15*135MM 12G*36H" |
| Rear wheel | Rim: MD-147 20*4.0""*36H*12G A/V | Spoke: 12G 126mm/127mm Hub: 48v 750w | Himiway Hub Motor |
| Tires | Kenda X Himiway 20*4.0 |
| Battery | Samsung/LG 48V 20Ah |
| Motor | 750W brushless gear motor |
| Display | Himiway C2 LCD Display |
| Throttle | Thumb throttle |
| Sensors | Torque sensor丨speed sensor丨brake sensor |
| Crankset | 44T BCD104 6061-T6 145mm |
| Cassette | Shimano MF-TZ500-7 14-28T |
| Chain | KMC Z8.3 EPT 130L |
| Groupset | Shimano altus M310 7 speed |
| Front brake | Tektro HD-E3520 hydraulic brake |
| Rear brake | Tektro HD-E3520 hydraulic brake |
| Rotors | Tektro TR180-52 F:180mm R:180mm |
| Stem | 3D forged alloy Ext:40mm |
| Handlebar | YC-B086 22.2*31.8*720mm |
| Seatpost | - |
| Saddle | Extended seat |
| Pedal | Aluminum pedal |
| Lights | 48V LED light |
| Kickstand | Heavy-duty aluminum kickstand |
| Range | 60-80 miles |
| Controller | 48V/22A |
| Charger | US standard 3.0 A smart charger |
| Rider height | 5'4"~6'3" |
| Weight | 88 lb. |
| Max. payload | 330 lb. |
SIZE CHART
