Eunorau FAT-HS Mid-Drive Full-Suspension MTB E-Bike

  • Sale
  • $3,439.00
  • Regular price $3,699.00
Shipping calculated at checkout.

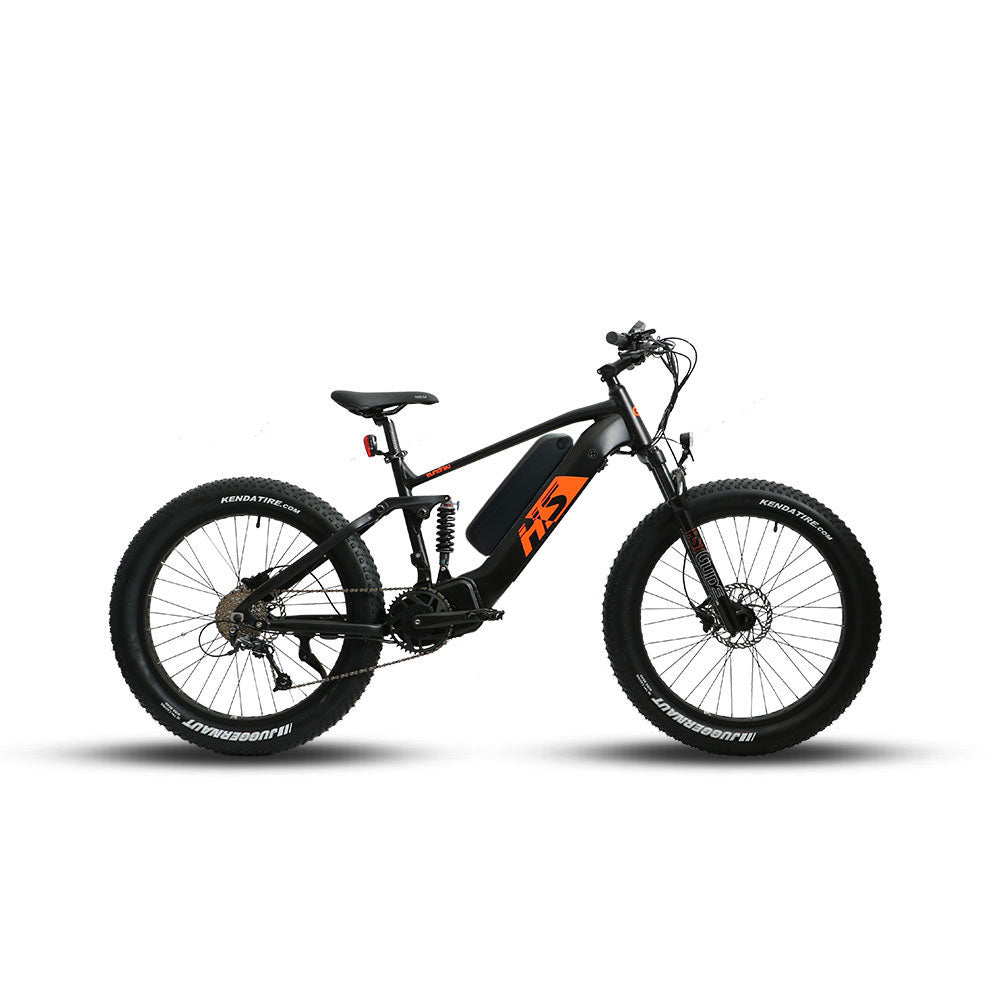

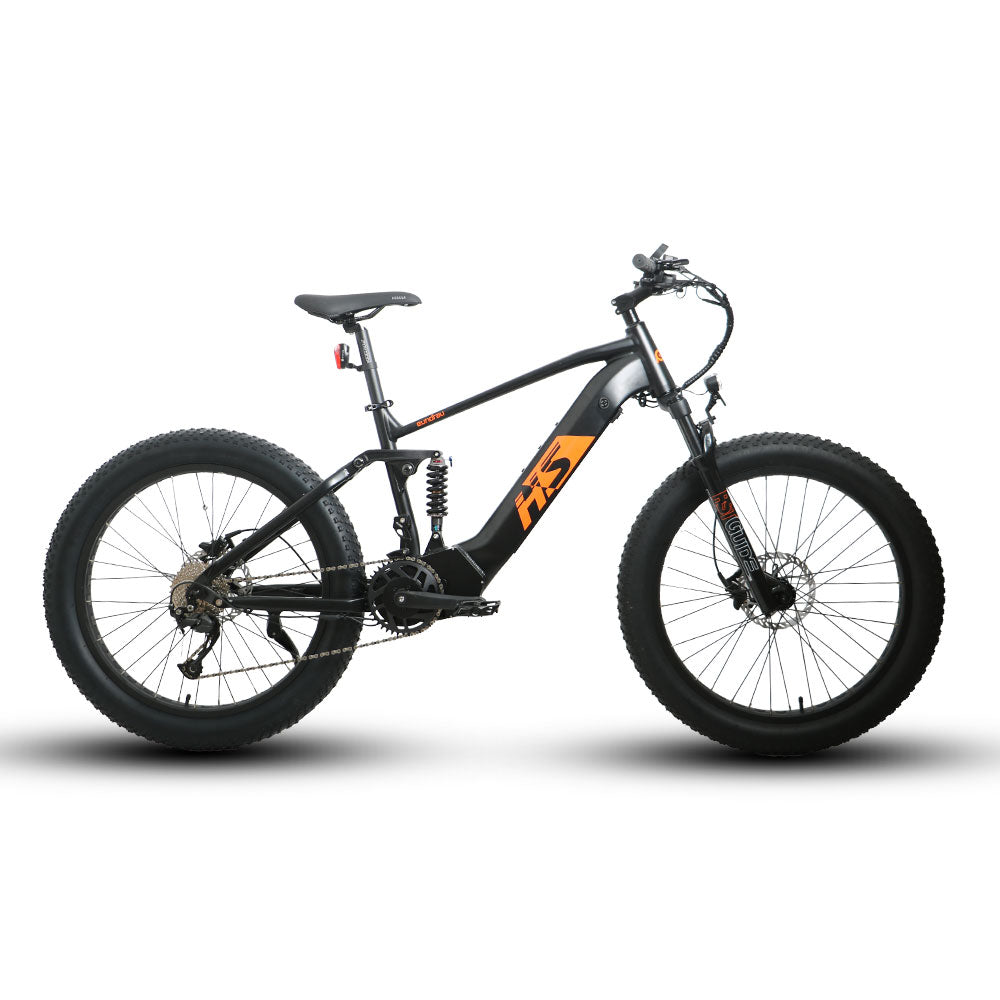

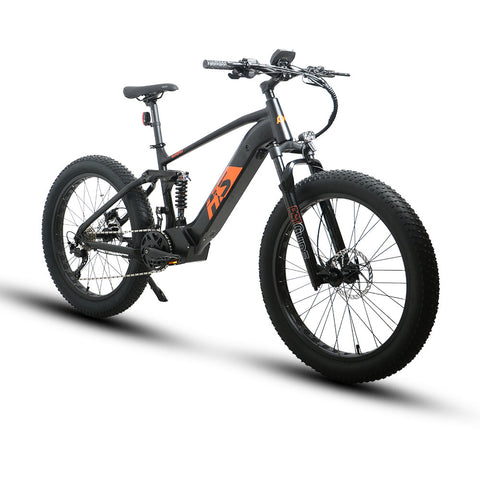

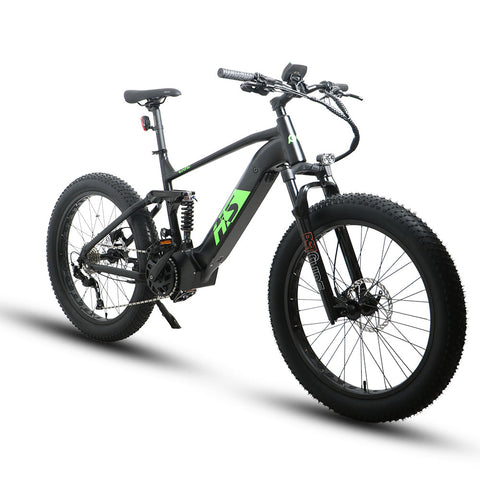

Eunorau FAT-HS Mid-Drive Full-Suspension Electric Mountain Bike

eunorau-defender-s-full-suspension-electric-mountain-bike-MTB-rider

High-Performance E-MTB Equipped with Mid-Drive Bafang Motor and 26x4” Fat or 27.5x3” MTB Tires

Action-packed off-road trail adventures await you on the Eunorau FAT-HS electric mountain bike. It has the upscale and almost overpowered Bafang mid drive motor with 1,000W nominal power, 160 Nm torque and a very ‘connected’ feel. The dual suspension and tapered head tube offer mountain bike handling, which you can amplify through optional 27.5x3.0” MTB wheels. Or, keep the 4.0” fat tires for extra cushion over the rough stuff, and float over sand and snow with ease. Either way, it’s a thrilling ride.

SUMMER 2024 PROMO (WHILE SUPPLIES LAST) - BUY A FAT-HS AND GET A FREE 2ND 14AH BATTERY (A $540 CAD VALUE)! PROMO CODE: EUNO-BATT


🇺🇸🍁 Free shipping in the US and Canada


😃 House of Bikes Exclusive: Assembly and delivery!

🚚 Available in Ottawa, Montreal and Toronto areas

eunorau-defender-s-full-suspension-downhill-electric-mountain-bikeeunorau-defender-s-full-suspension-electric-mountain-bike-exa-rear-coil

DRIVETRAIN
•  Bafang M615 BBHSD mid-drive motor with 160 Nm torque
•  1,000W nominal, 1,500W peak power
•  Shimano or Sunrace 9-speed

BATTERY & RANGE
•  48V/15Ah Samsung battery included, integrated in downtube
•  Additional 14Ah battery (optional on 17” and 19” size)
•  Additional 17Ah battery (optional on 19” size only)
•  Up to 80 mi (130 km) range depending on chosen battery combo

TOP SPEED
•  Class 2: 32 km/h (20 mph)
•  Class 3: 45 km/h (28 mph)
•  Can be selected via display

WARRANTY
•  2-Year on motor, battery & electrical
•  10-Year on the frame

HIGHLIGHTS
•  High-performance mountain bike
•  High-quality Bafang M615 BBSHD mid-drive motor
•  Full-suspension design
•  Dual-battery options
•  Choice of 26" x 4.0"  FAT or 27.5” x 3.0” MTB tires
•  Hydraulic disc brakes with 180mm rotors
•  RST Guide 75mm front fork & EXA 388RL 48mm rear shock

eunorau-defender-s-full-suspension-electric-mountain-bike-in-a-fieldeunorau-defender-s-full-suspension-electric-mountain-bike-MTB-rider

OUR TAKE

This electric mountain bike offers a lot of performance and versatility too. Situated at the bottom center of the bike, the Bafang mid-drive motor isn’t just ultra powerful, it also keeps the center of gravity low to the ground. This creates a sharper ride versus traditional hub motors, and feels very connected to pedal inputs on the 9-speed Shimano drivetrain.

Further contributing to its agility is a tapered head tube and full-suspension frame, highlighted by the pivot-linkage rear EXA spring. To really enhance its mountain bike feel, you can upgrade to plus-sized 27.5” x 3.0” MTB tires, or keep the stock 26” x 4.0” fat bike setup for more shock absorption on off-road trails and different terrains like snow or sand.

The FAT-HS-S comes in medium (17”) and large (19”) sizes, suiting riders from 5’3 to 6’4. An optional 14Ah secondary battery is available for both sizes while the larger 17Ah battery only fits the large 19” frame, with the rear suspension locked-out. Although the included 15Ah battery is adequate, it’s advisable to opt for the additional battery if you want longer rides especially in challenging terrain.

Last but not least, Eunorau’s excellent 2-year warranty on all electrical components, including the motor and battery(ies) means you can enjoy this electric bike with peace of mind for many years to come. All-in-all, the Eunorau FAT-HS is a powerhouse ‘fat’ MTB with unique features that will put a smile on your face every time you take it out for a ride.

eunorau-defender-s-full-suspension-electric-mountain-bike-banfang-mid-drive-motoreunorau-defender-s-full-suspension-electric-mountain-bike-LCD-display

FEATURES

eunorau-defender-s-full-suspension-electric-mountain-bike-bafang-mid-drive-motor

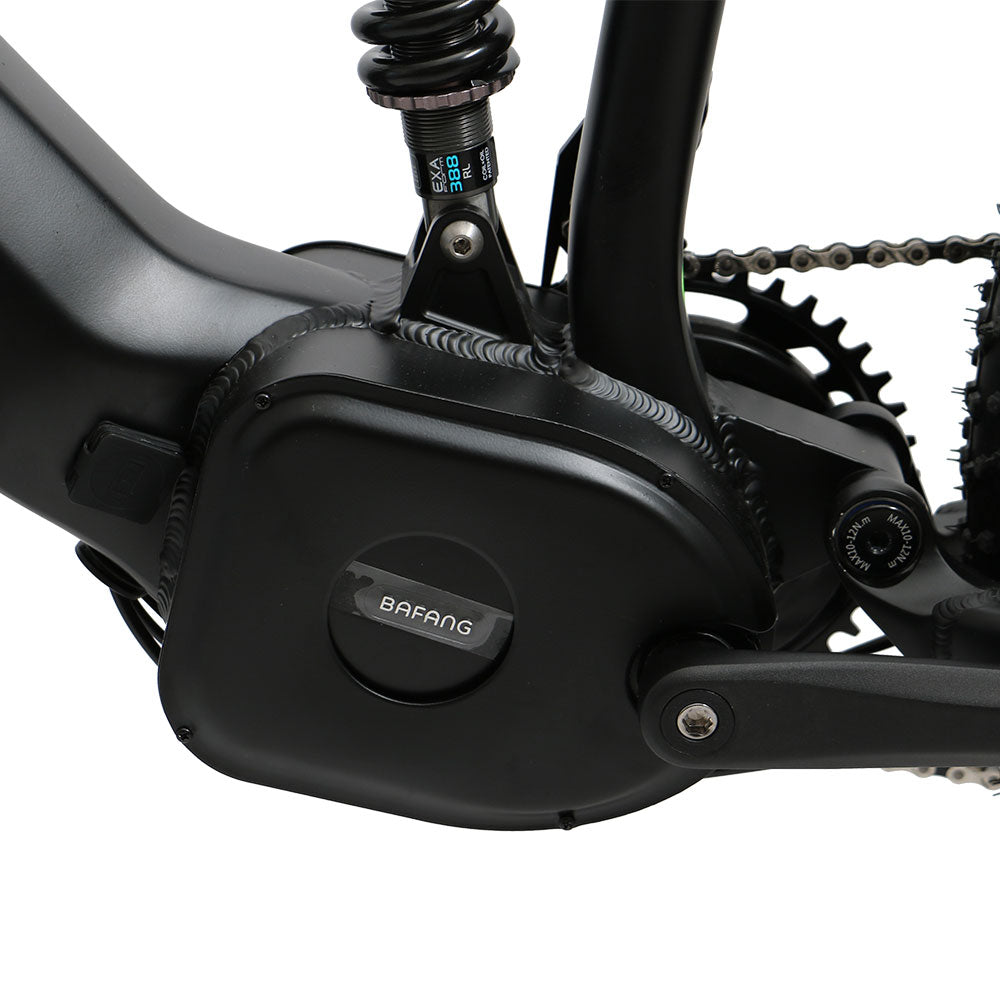

Bafang M615 BBSHD 1,000W Mid-Drive Motor Bafang is world-renowned for its high quality e-bike motors! The FAT-HS comes with a low, center-mounted mid-drive unit that makes enormous power: 1,000 Watts nominal, 1,500 Watts peak and 160 Nm of torque.

eunorau-defender-s-full-suspension-electric-mountain-bike-lithium-battery

Removable Dual Battery System – A game changer that offers longer range and convenience when re-charging. The FAT-HS comes with a 15Ah battery, neatly integrated in the downtube, and you can choose to add a second 14Ah or 17Ah battery for up to 130 km of range in total. All batteries are removable with a simple twist of the key, so you can charge them indoors and prevent theft.

Shimano 9-Speed Drivetrain – A cut above other cassettes, the Shimano MTB derailleur offers better, smoother shifting and 9 gears to effortlessly adapt to diverse terrains. Climb hills with larger cogs, speed up with smaller cogs, and take your adventures to the next level with pedal-assisted throttle.

Hydraulic Disc Brakes with 180mm Rotors – Experience supreme braking power and control thanks to large 180mm front & rear rotors. The brakes are sensitive and provide ample force to slow you down. They maintain their efficiency even in harsh weather conditions so you can rely upon them to ensure your safety. They also have a motor cut-off switch to disengage the motor while the brakes are applied.

eunorau-defender-s-full-suspension-electric-mountain-bike-rst-guide-fork-suspension

RST Guide 75mm Suspension Fork – Effectively absorbs most jarring bumps and shocks, especially on the rougher terrains you will encounter on this e-bike. Greatly improves comfort and handling while reducing fatigue.

eunorau-defender-s-full-suspension-electric-mountain-bike-rear-suspension

Exa KS388 RL 48m Rear Suspension – The rear coil suspension is designed to significantly cushion rough terrain and drops, creating a stable feel that allows you to pedal and throttle forward with ease. It greatly enhances the bike’s high-performance characteristics and makes the journeys more comfortable too.

LED Headlight Powered using the main battery pack and controlled by the display. Efficient electric lights ensure your riding safety at night, never having to worry about charging or replacing its batteries at the end of a long day.

eunorau-defender-s-full-suspension-electric-mountain-bike-cockpit

Mountain Bike Cockpit – A wide handlebar and MTB grips offers more control, and more confidence when riding. Everything from the thumb throttle, pedal-assist selector, shifter and brakes is conveniently located at your fingertips, and combined with a bright center-mounted LCD display, you can just focus on the terrain ahead and enjoy the ride!


eunorau-defender-s-full-suspension-enduro-electric-mountain-bikeeunorau-defender-s-full-suspension-electric-mountain-bike-trail-rider

SPECIFICATIONS

Battery 48V15Ah Standard+Optional Second Battery 14/17Ah
Range 80 Miles (48V17Ah SAMSUNG Cells + Second Battery 17Ah)*
Motor 48V1000W Bafang M615 mid motor with 160 N.m torque
Total Payload Capacity 300 lbs
Recommended Rider Heights 5'3" ~ 6'4"
Maximum Speed 28 MPH
Charger US standard 2.0 A smart charger
Controller 48V
Display CDC6 LCD Display
Weight 77.1 lbs
Pedal Assist Intelligent 0~5 level pedal assist
Box Dimensions (cm) 172 L x 36 W x 85 H

COMPONENETS

Tires Kenda Tires 26" x 4.0"
Brake lever Hydraulic disc Brakes Levers
 with motor cutoff switch
Rear Light Taillight
Shifter SHIMANO ALTUS/SUNRACE RDM91
 9 speed gear shift system
Brake Rotor EUNORAU Design 180MM
Hydraulic Disc Brakes
Throttle Thumb throttle
Stem EUNORAU TDS-D507G-8FOV
Crank 170mm forged alloy
Cassette Shimano- 11-34T
Front Fork RST GUIDE 75mm Travel
Rear Shock KS-388RL,48mm
Pedal Nylon pedal with reflectors
Frame Aluminum Alloy 6061 Full Suspension
Front Light 6-60V LED light
Saddle Selle Royal Saddle, Height to Ground 34"-43.3"
Tool Included
Chainring 42T 7075 CNC chain-wheel crank
Rims 26 inch Black Alloy wheels


*Note: To avoid any damage, please lock out the rear shock when you install the 17A second battery.

GEOMETRY - MEDIUM 17"

eunorau-defender-s-mid-drive-full-suspension-e-mtb-medium-geometry

GEOMETRY - LARGE 19"

eunorau-defender-s-mid-drive-full-suspension-e-mtb-large-geometry
