SCOTT SUB TOUR 40 WAVE BELT-DRIVE URBAN COMMUTER E-BIKE
BRAND NEW 2027 MODEL!
LIMITED AVAILABILITY
PRE-ORDER YOURS NOW!
PICK-UP ETA
NOVEMBER 2026
A CONFIDENT, DYNAMIC RIDING EXPERIENCE IN AN URBAN-READY PACKAGE

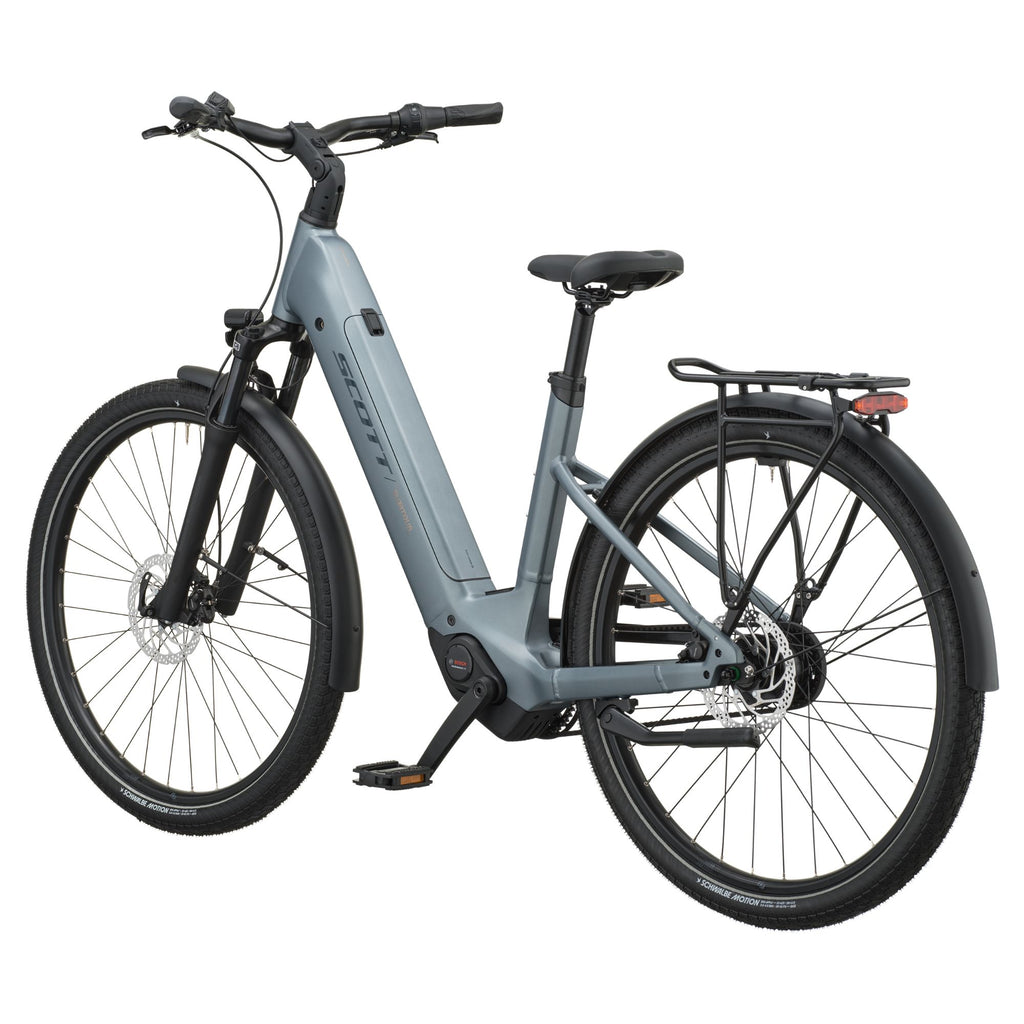

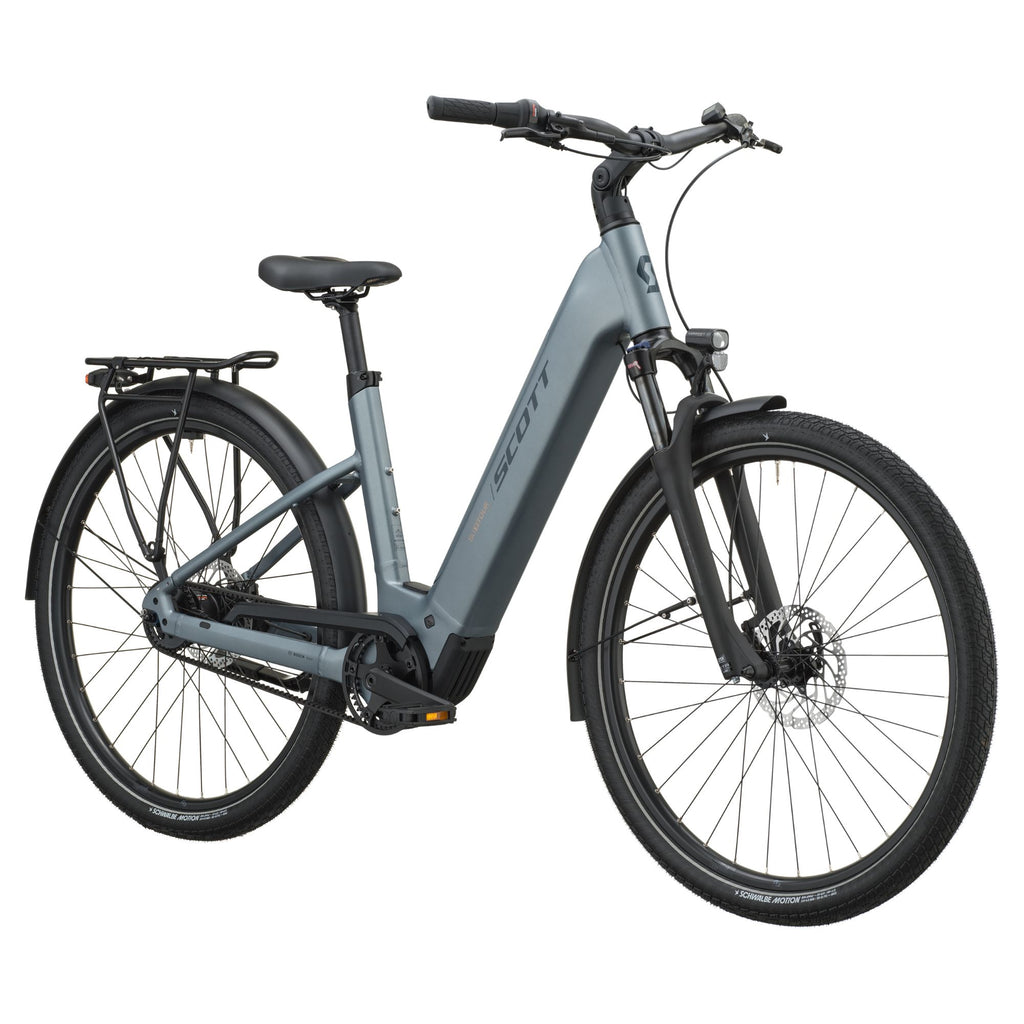

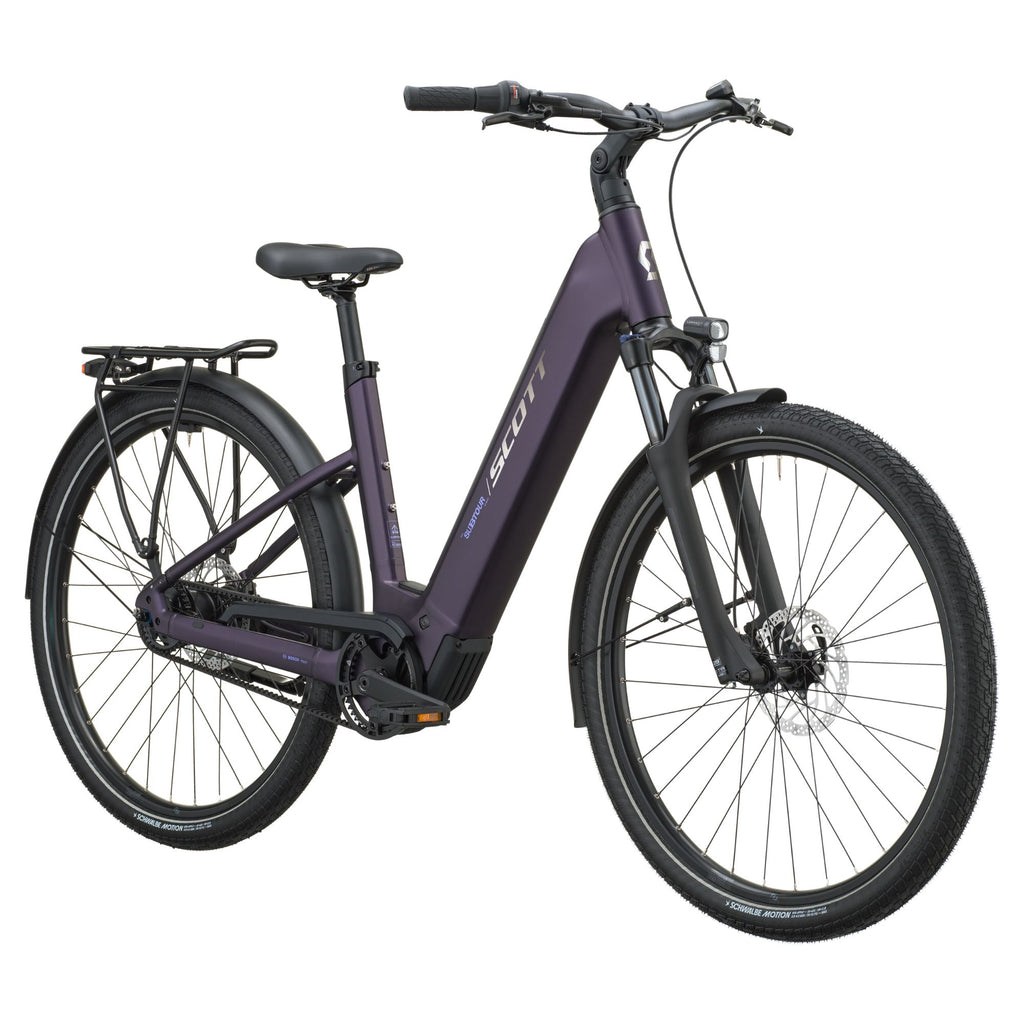

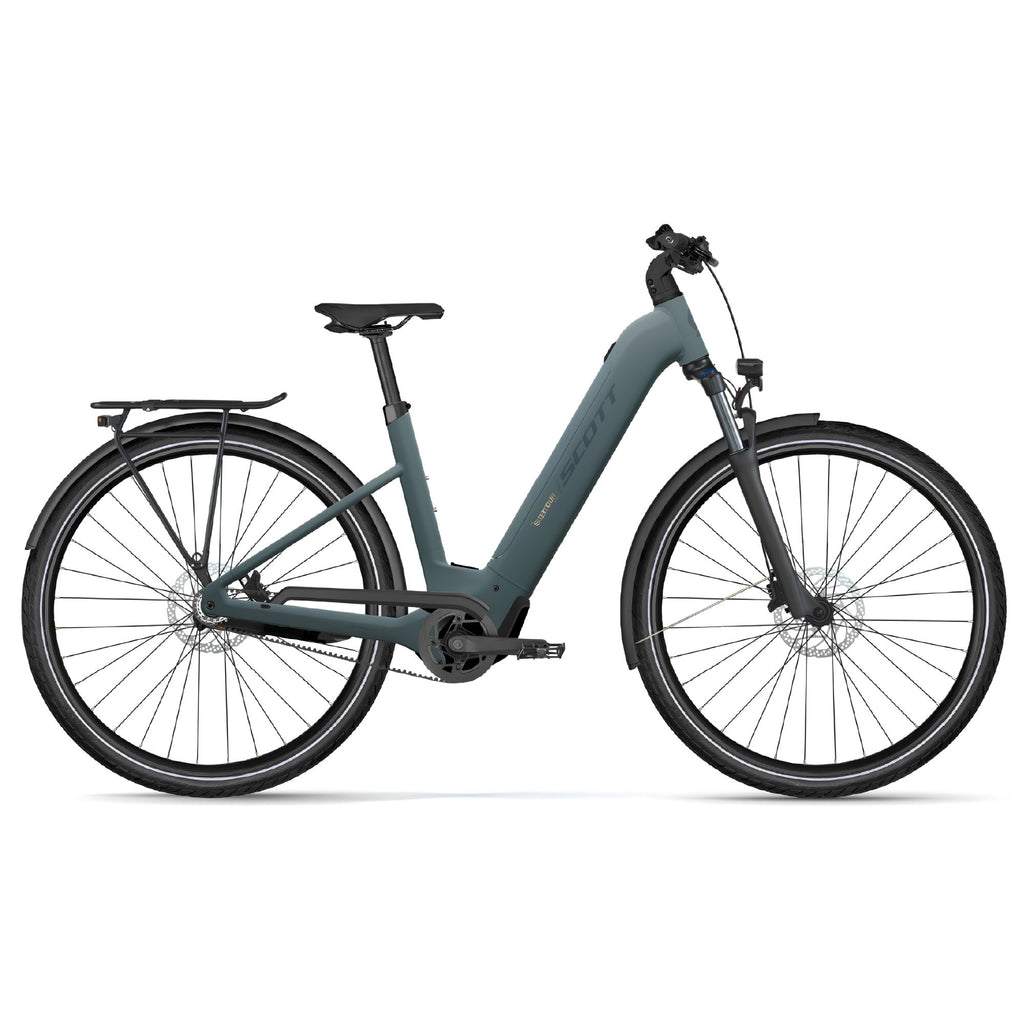

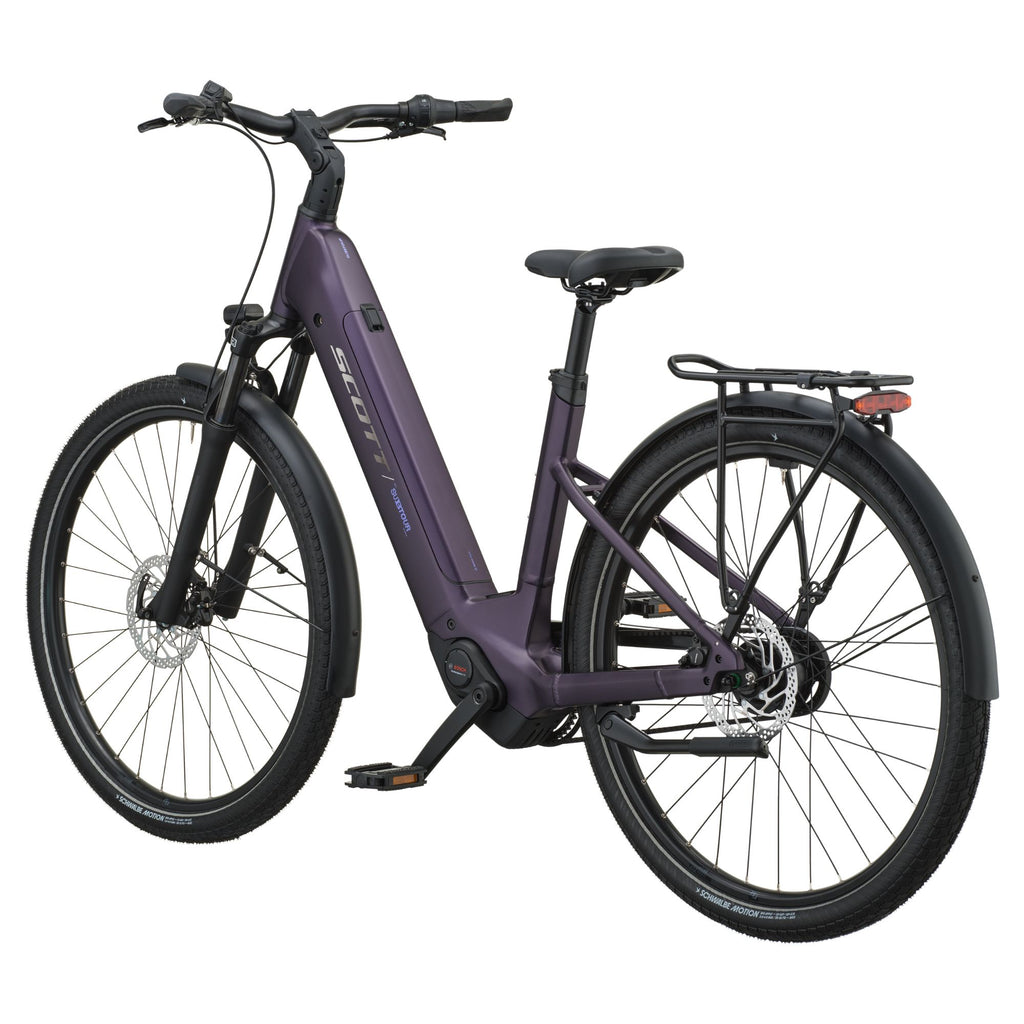

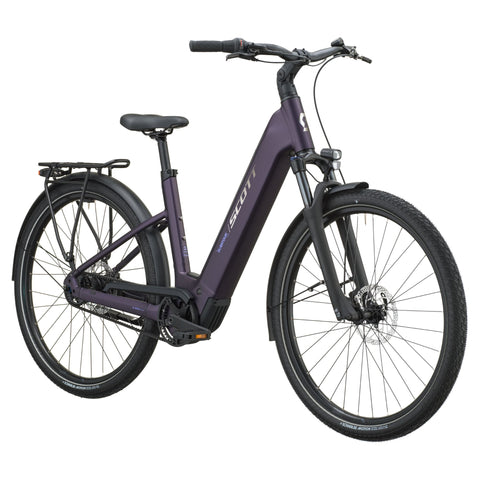

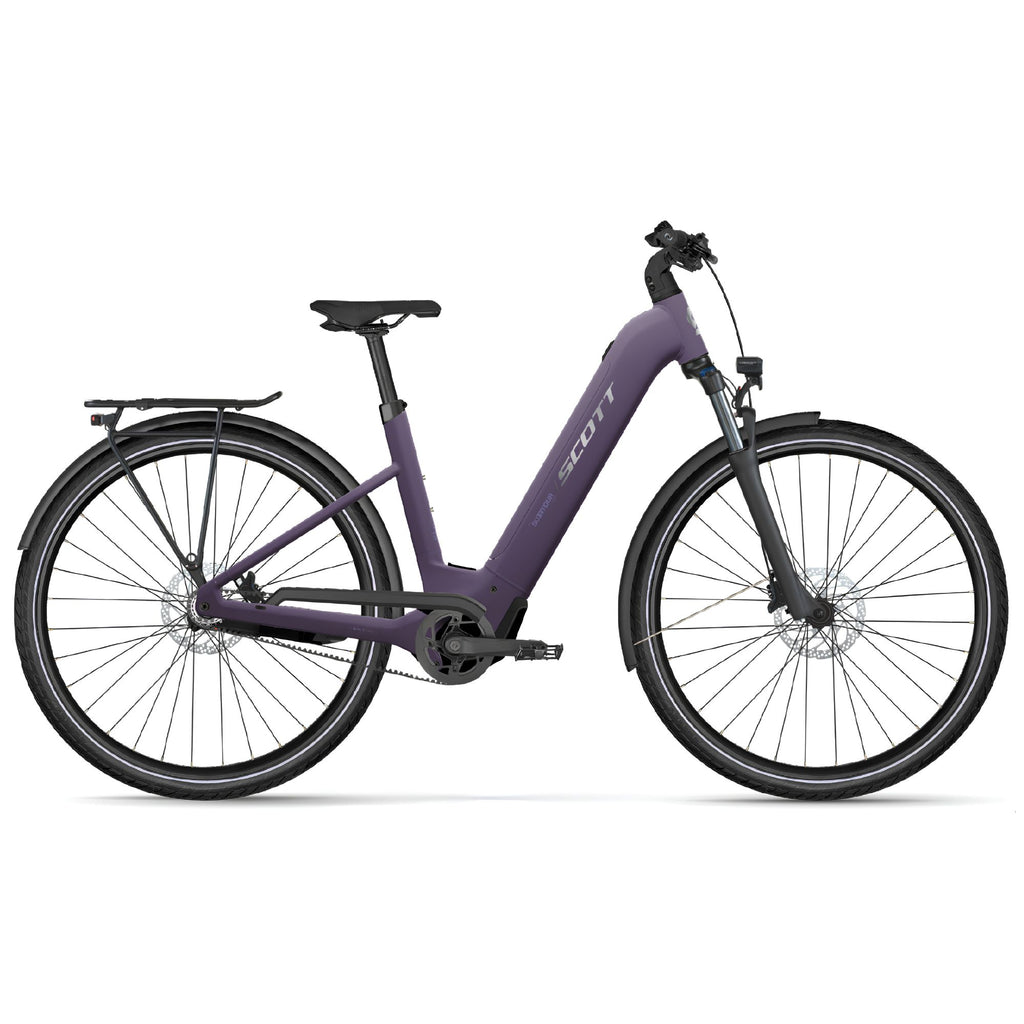

The SCOTT SUB Tour 40 Wave E‑Bike delivers a confident, dynamic riding experience in an urban‑ready package. Its low step-through frame makes mounting and dismounting effortless.
Powered by a Bosch Performance motor and a removable 540Wh battery, the bike provides smooth, natural‑feeling acceleration and ample range for any city adventure. The belt‑driven drivetrain ensures quiet, low-maintenance power delivery, while multiple assist modes let you tailor the ride to your needs—whether you’re heading to the office, grabbing coffee with friends, or cruising past traffic jams. Maintenance is further reduced thanks to the internal gear hub which extends service intervals.

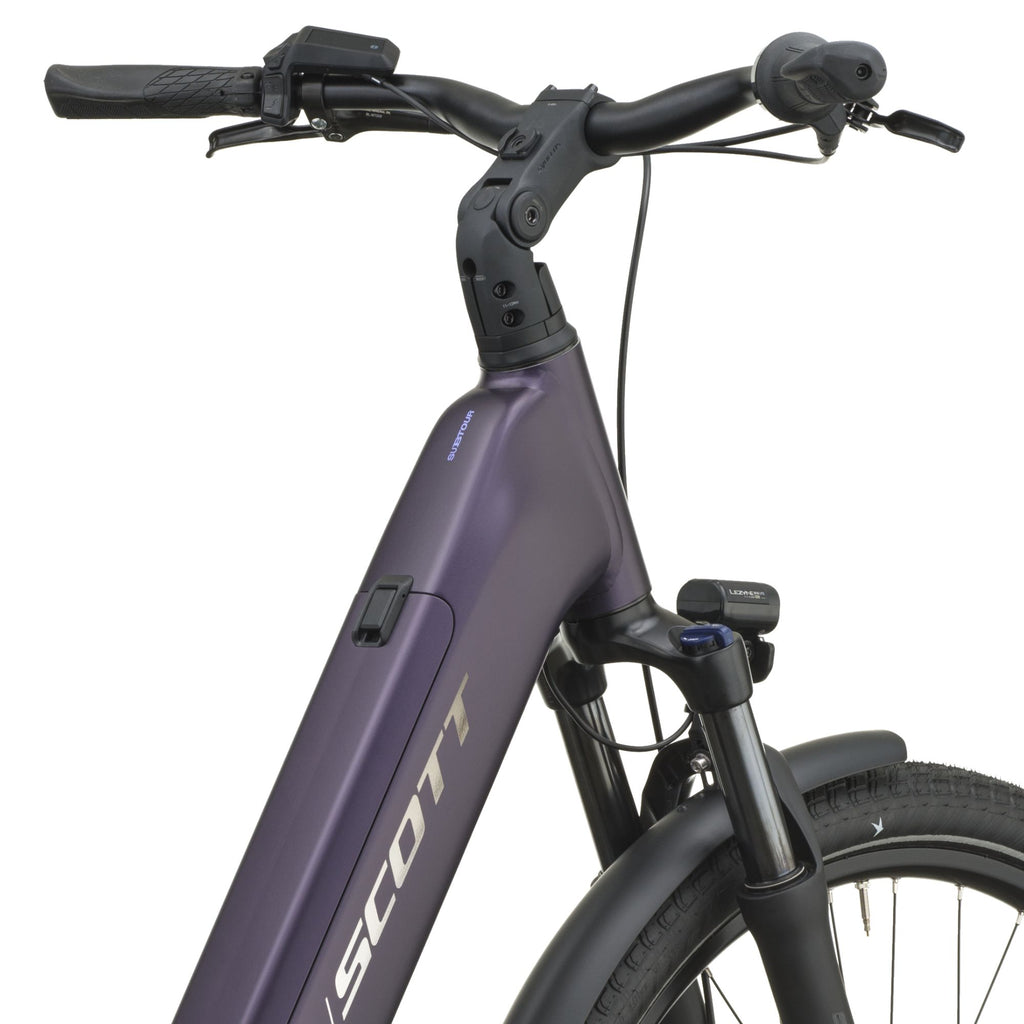

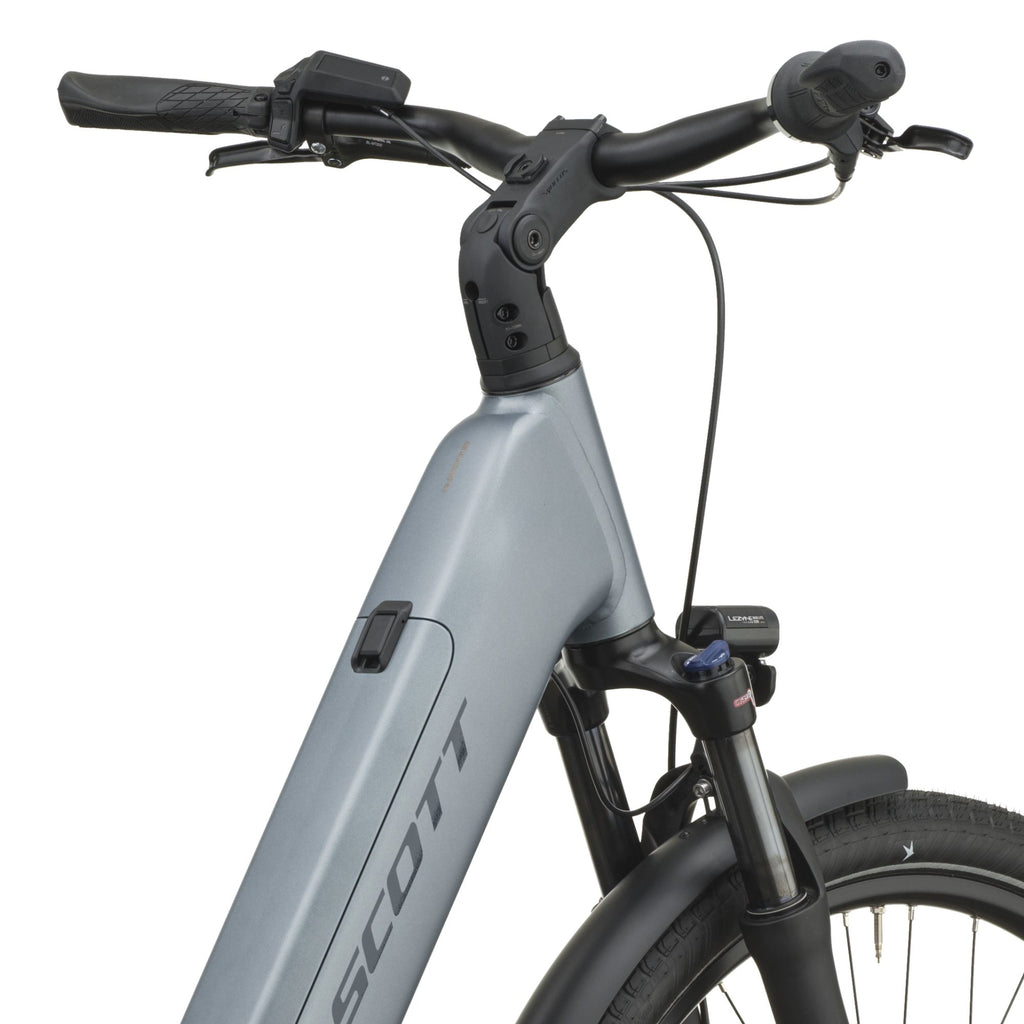

An adjustable stem lets you customize your fit for a comfortable upright posture or a sportier riding position, and it includes an SP connection that securely mounts your phone for hands‑free navigation, keeping directions in clear view.
The rear rack supports up to 30kg and is compatible with Racktime SNAPIT 2.0 and KID'n’CARRY systems, making it a real cargo workhorse. Even more, the front light is positioned on the fork to free up space for a front basket, giving you extra carrying flexibility.
The SUB Tour 40 Wave adapts to and supports your daily life with a dynamic ride that doesn't compromise on comfort or control.
🏬 Available exclusively at our store in Ottawa.
🚴 Try before you buy: book your test ride today!
🔧 Professional assembly service available.
SPECIFICATIONS
Please note that bike specifications are subject to change without prior notice.
FRAME
Alloy S-XL=29"
6061 Alloy custom butted tubing
Top extraction battery
135mm with 46mm Beltline
TRAVEL
100mm
FORK

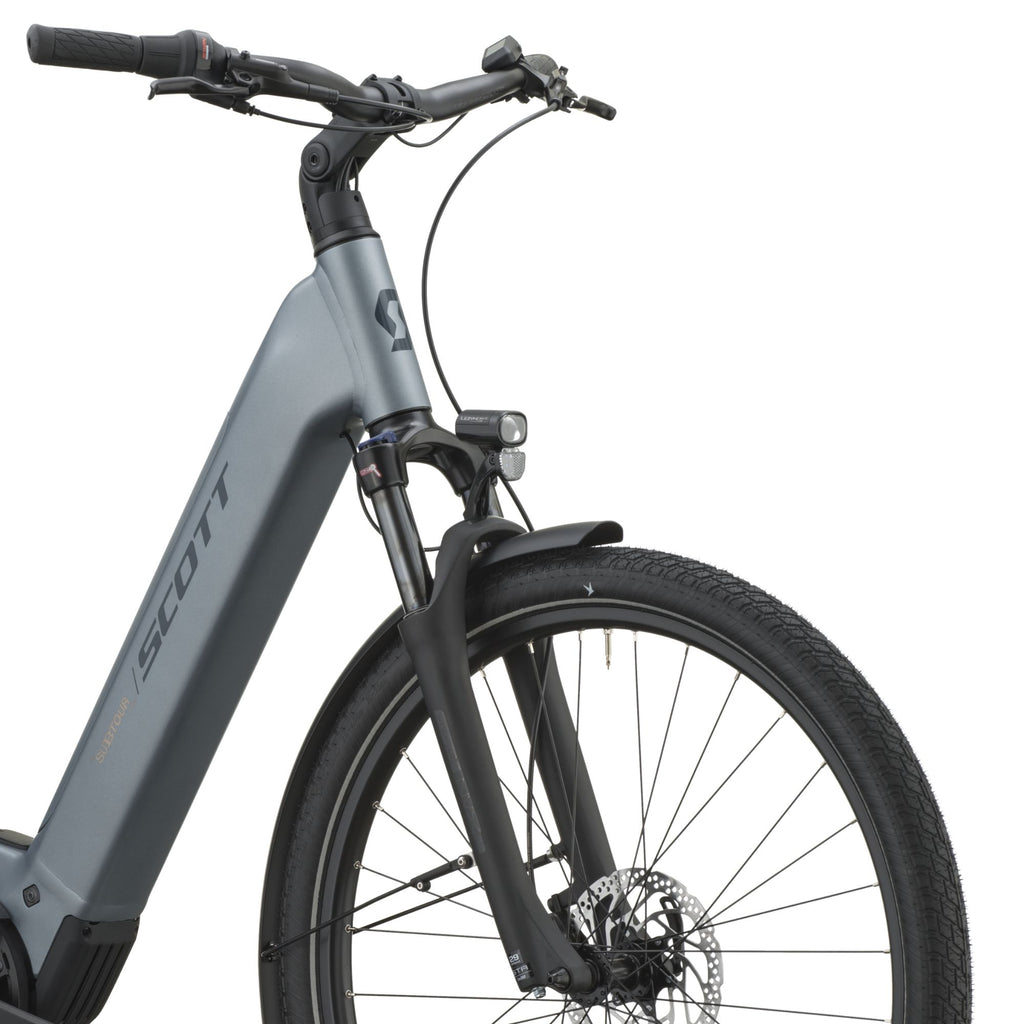

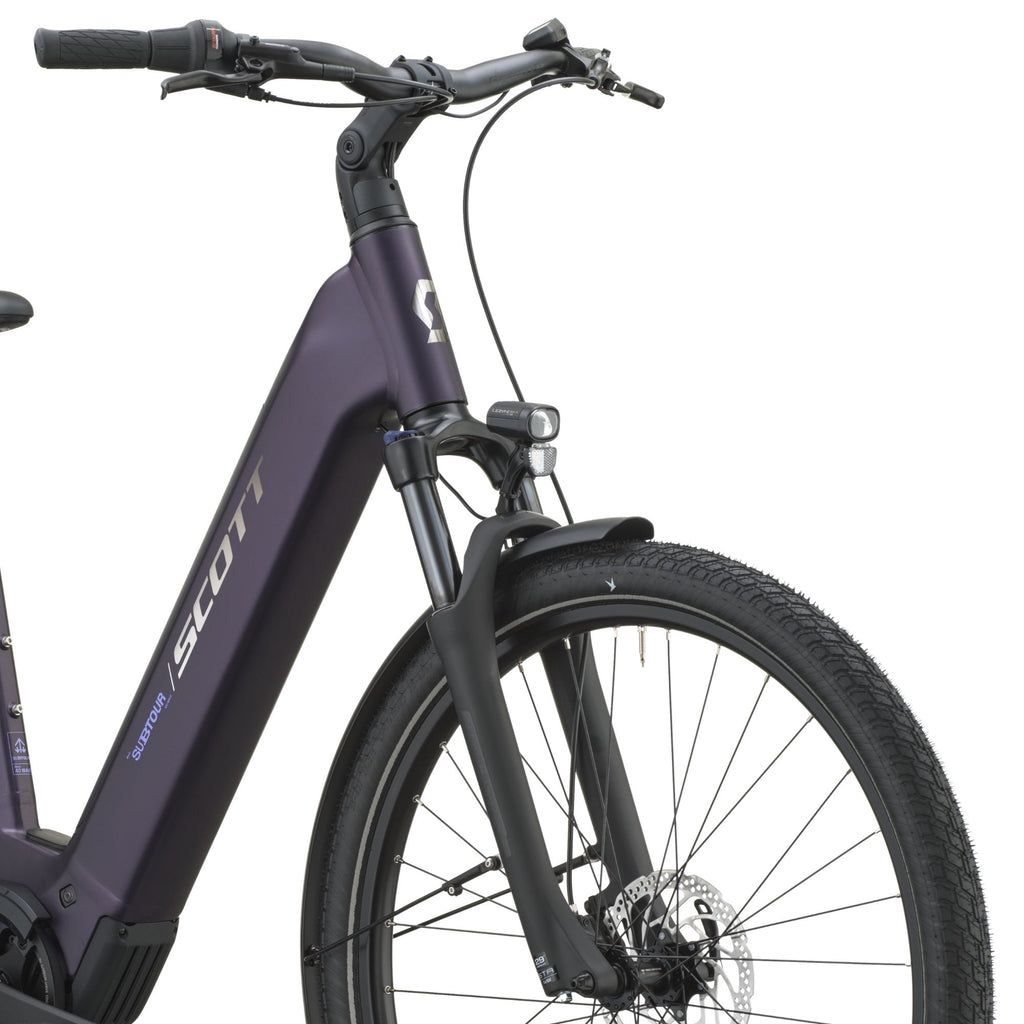

SR Suntour NVX 32 5TA COIL LO
DRIVE UNIT

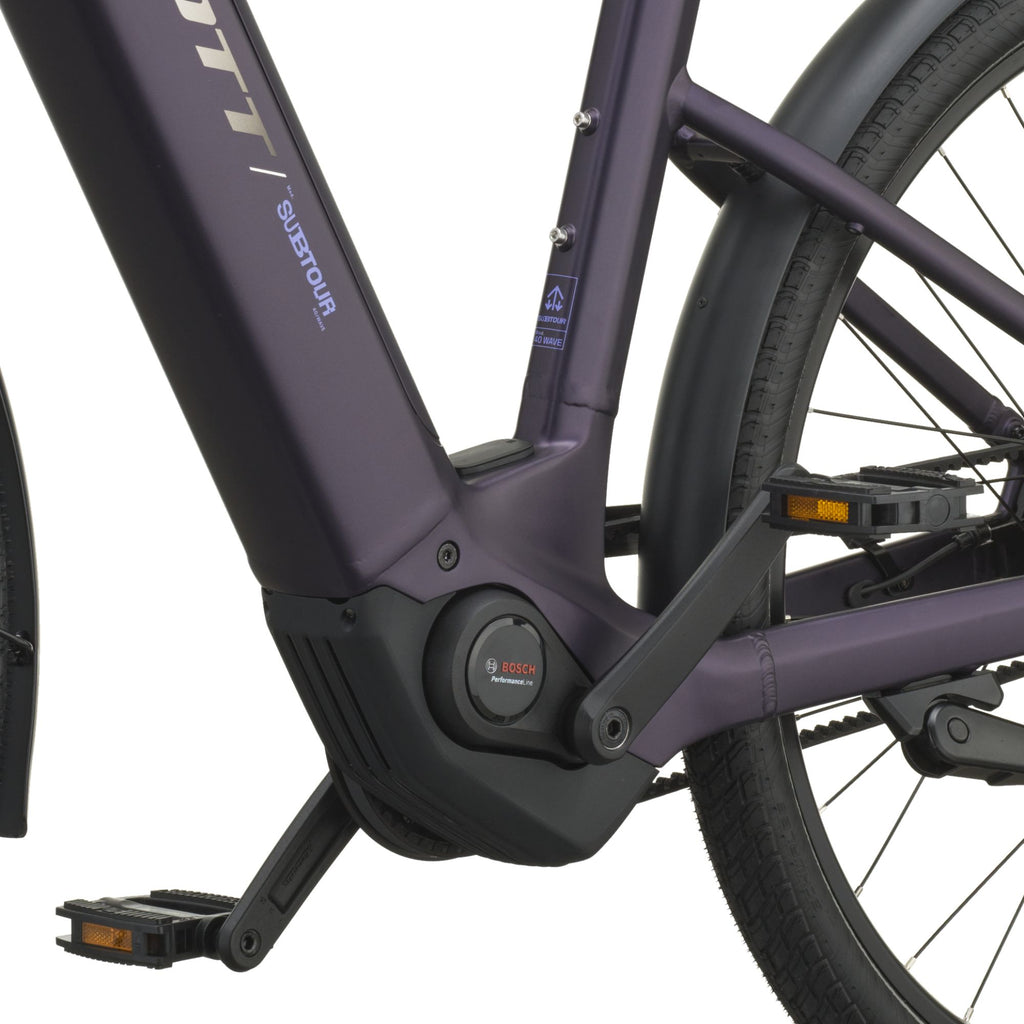

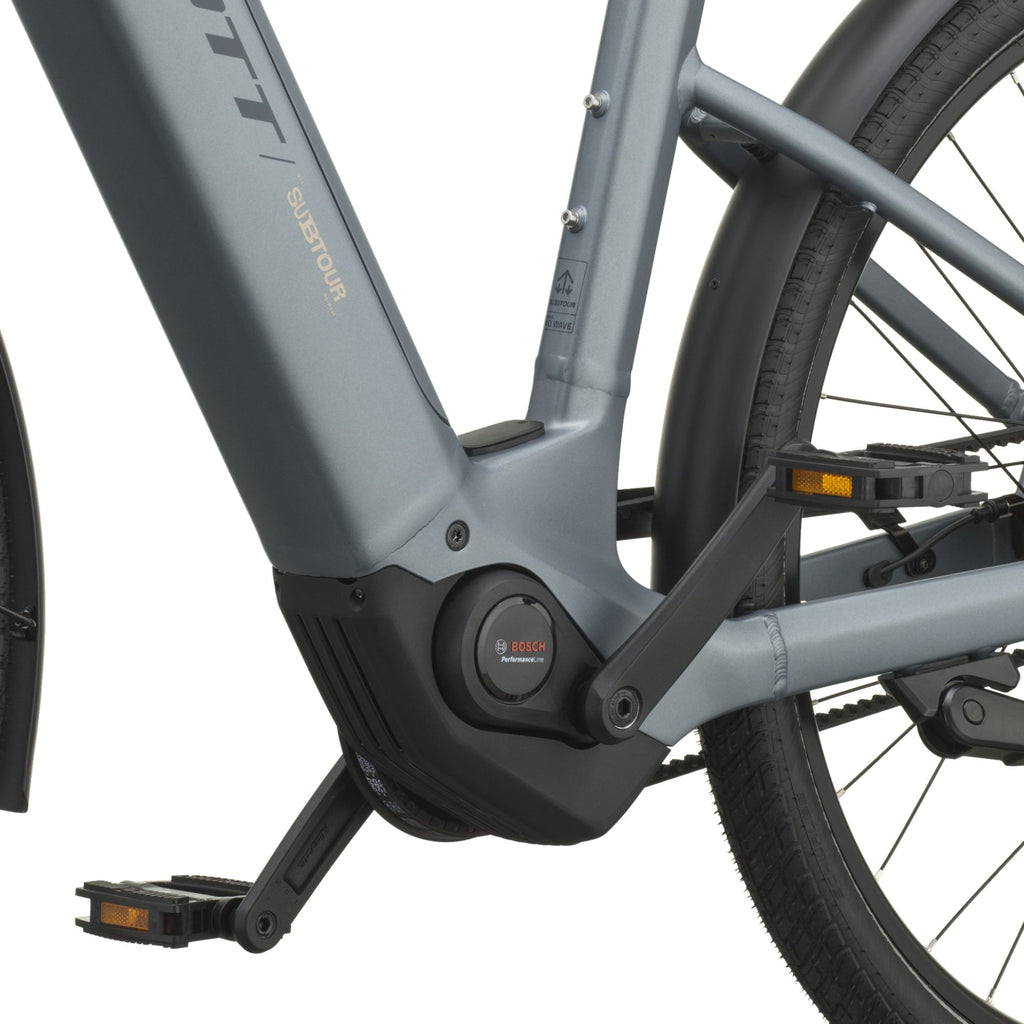

Bosch Performance Line (BDU346Y), 75Nm
Maximum motor-assisted speed: 32 km/h (20 mph)
BATTERY
Bosch PowerTube 540Wh
DISPLAY
Bosch Purion 200
CHARGER
Bosch 2A Charger 230V
REAR DERAILLEUR

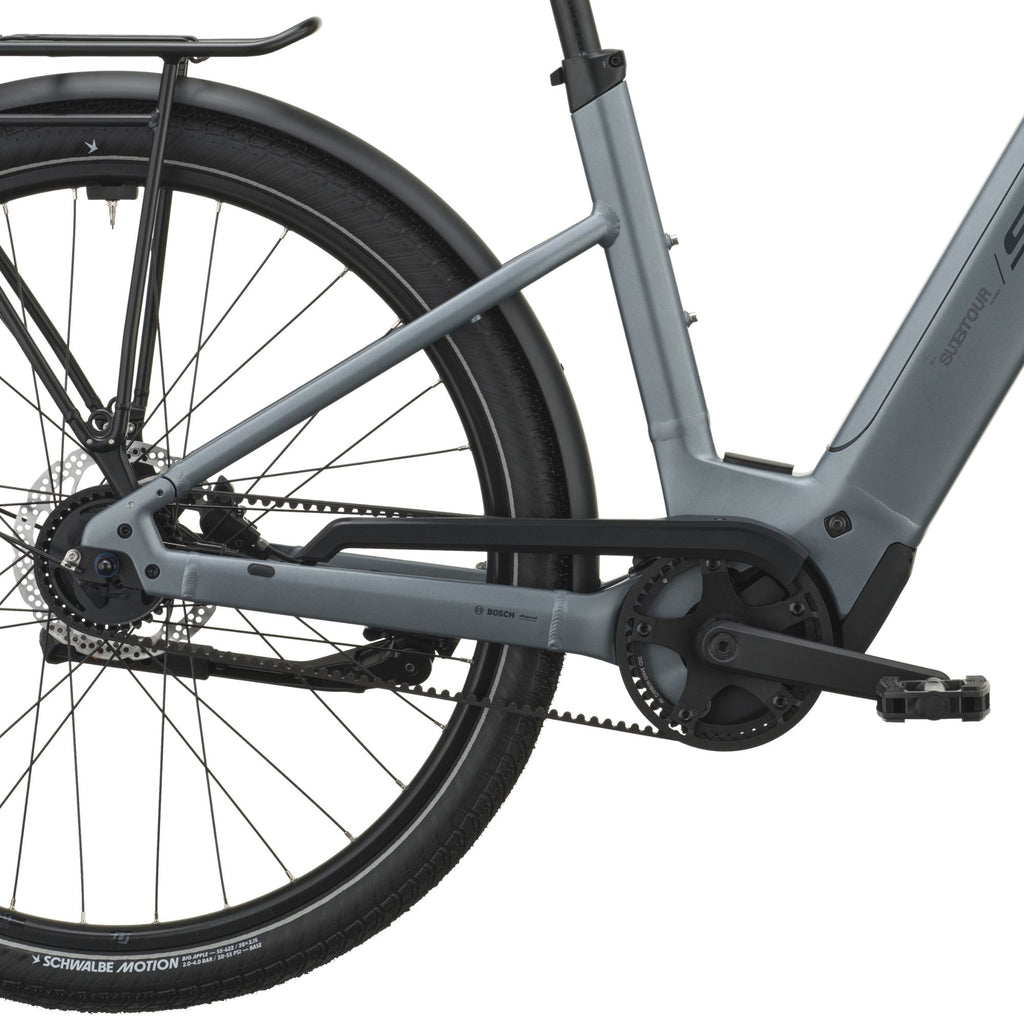

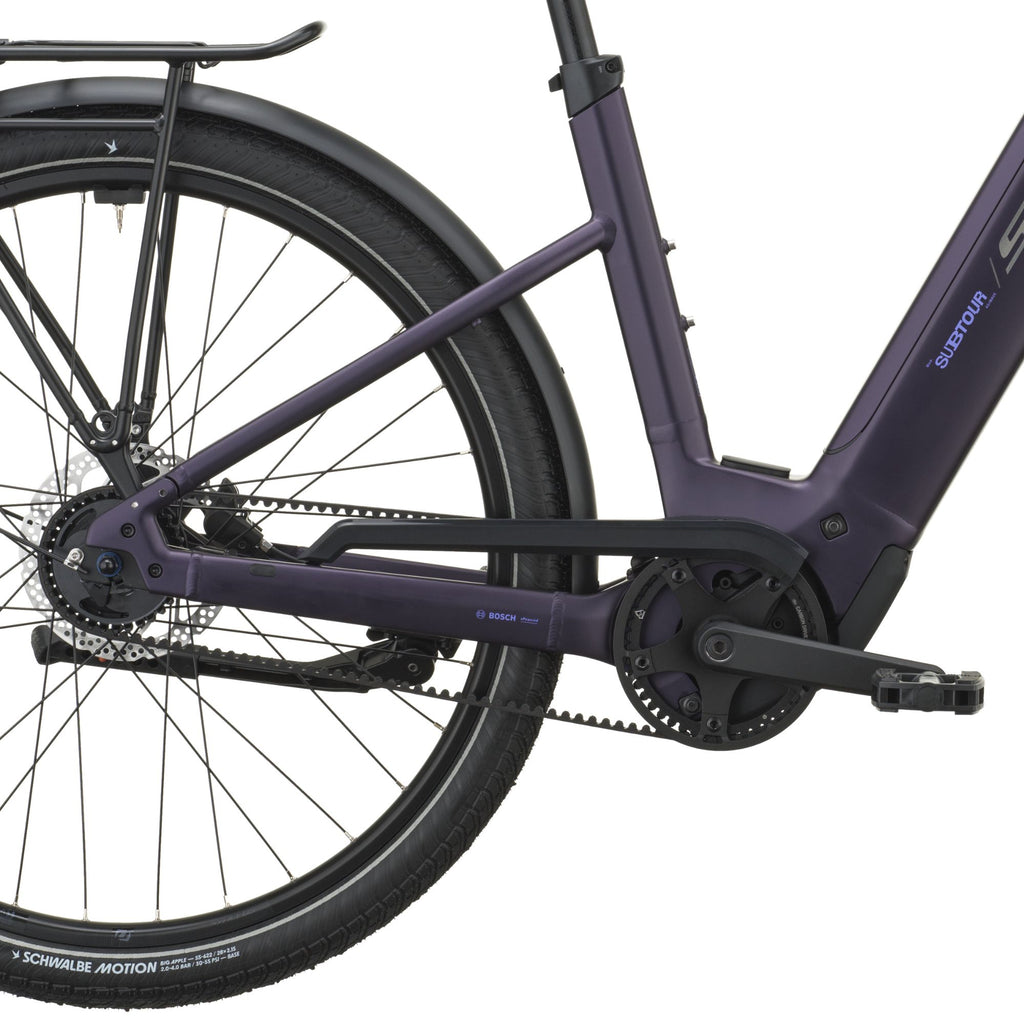

Shimano Nexus Inter 5e
SHIFTERS
Nexus 5 Revo Shifter
CRANKSET
Miranda Virage 170mm
CHANGUIDE
Chaincase cover
CHAINRING
Gates CDC 46T w/Guard
CHAIN
Gates CDC 130T
CASSETTE
Gates CDX 32T
BRAKES
Shimano BR-MT200 2-Piston
ROTORS
Front: Shimano SM-RT30 CL, 180mm
Rear: Shimano SM-RT30 CL, 160mm
GRIPS
Urban Comfort
HANDLEBAR

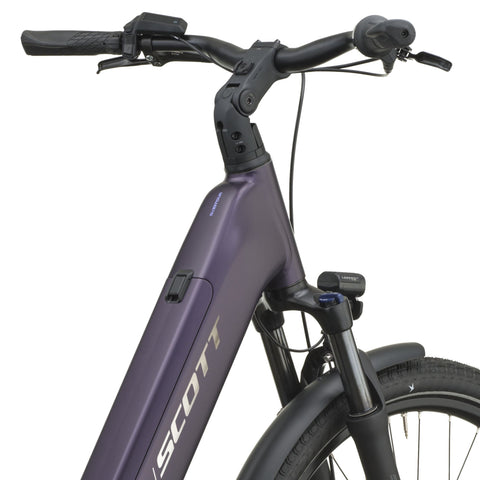

Syncros UC3.0 680mm
Rise 26mm
Backsweep 30°
H'STEM
JD, Adjustable, 31.8*90mm
−10°~+60°
SP Connect
SEATPOST

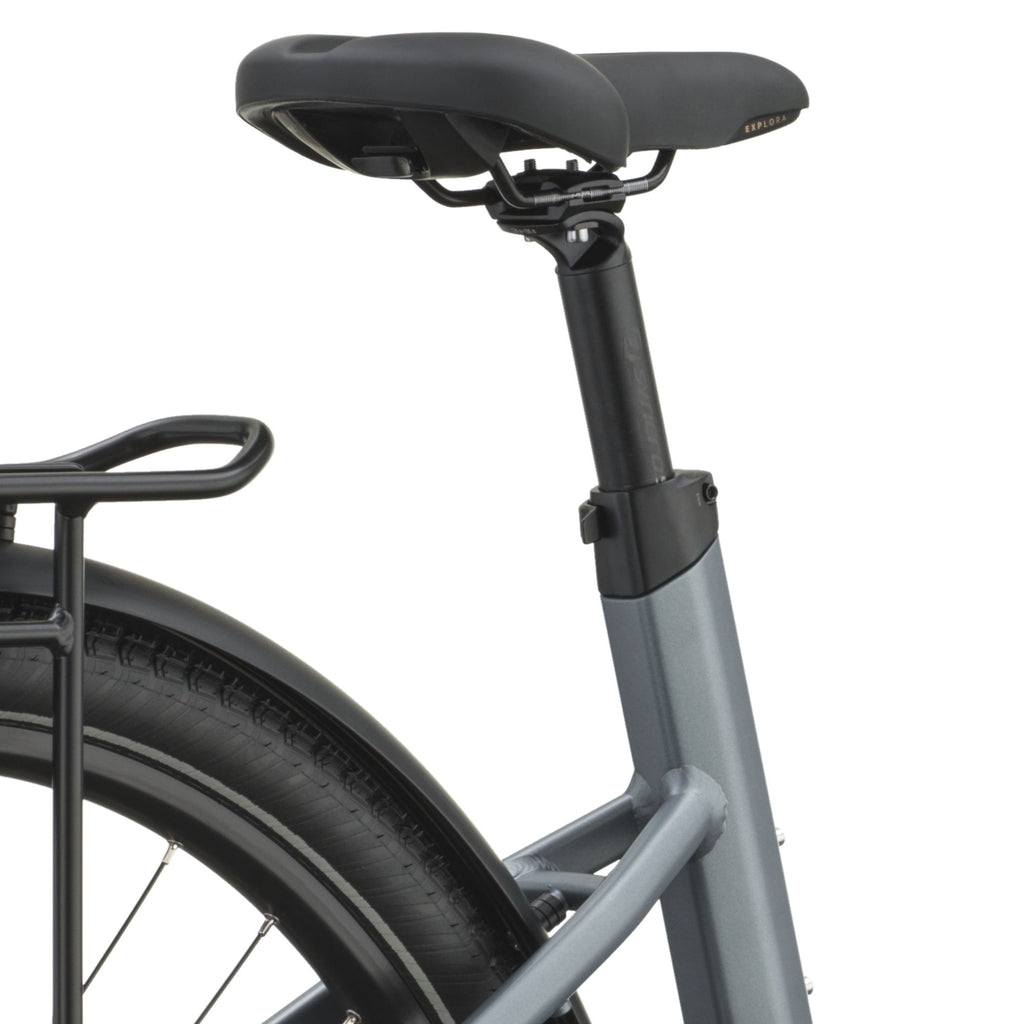

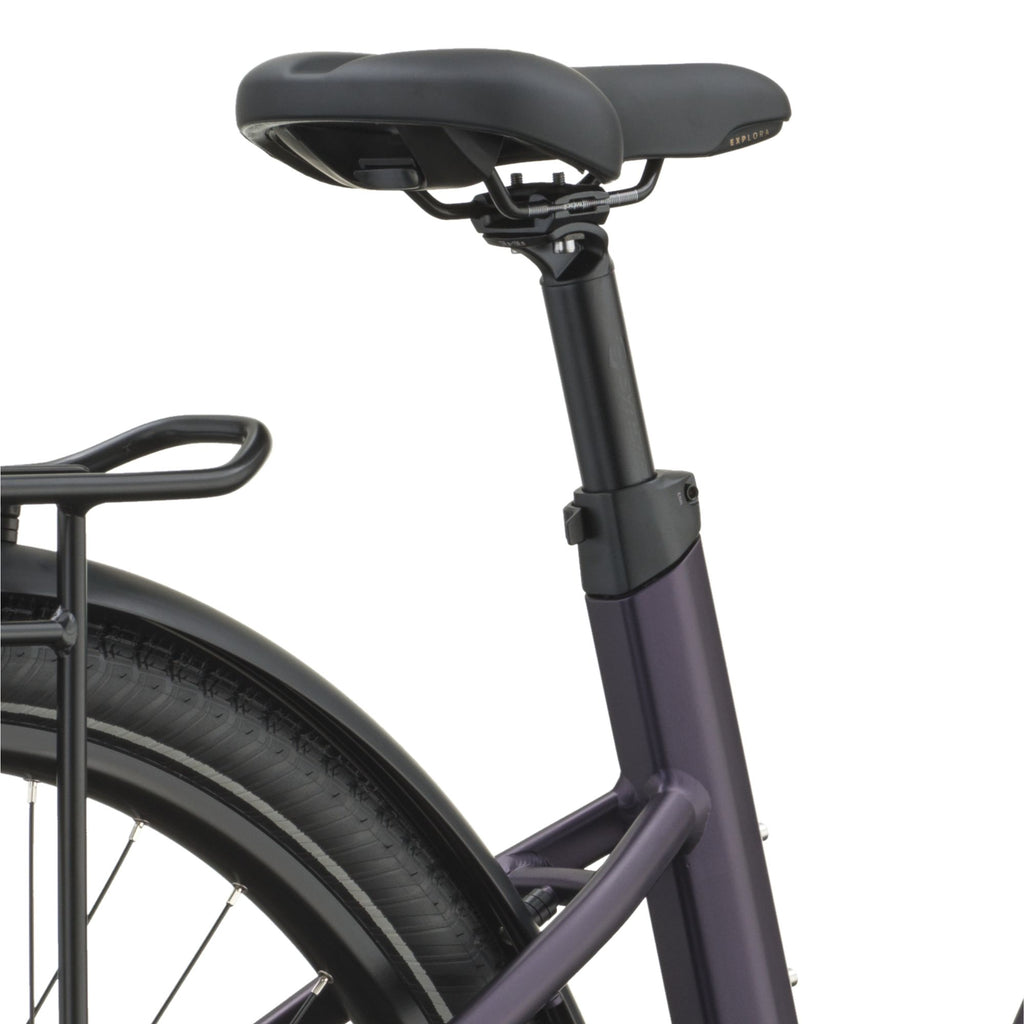

Syncros M3.0, 31.6mm, 350mm
SEAT
Selle Royal Explora Moderate Wide 195mm
HEADSET
Feimin, 28.8-56-62(39.8/30)
H887 Bearing Cup
FRONT HUB
Shimano HBQC400B58LL, 5x100mm
SPOKES
Stainless Black 13G
RIMS
Front: X18 Disc
Rear: X18 Disc
TIRES
Front: Schwalbe Big Apple Performance, 55-622
Rear: Schwalbe Big Apple Performance, 55-622
LIGHTS
Front: Lezyne Mini Lite STVZO E350
Rear: Lezyne Superbright STVZO
RACK
Racktime carrier SNAPIT 2.0 30Kg
KID'n'CARRY Ready
FENDERS
Metasol 65
PEDALS
Marwi SP-827
EXTRAS
Ursus U-Mount Kickstand
WEIGHT
Approx. 29.8kg
Approx 65.7lbs
MAX. SYSTEM WEIGHT
160kg / 353lbs
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
