SCOTT PASSAGE 10 WAVE BELT-DRIVE URBAN COMMUTER E-BIKE
BRAND NEW 2027 MODEL!
LIMITED AVAILABILITY
PRE-ORDER YOURS NOW!
PICK-UP ETA
NOVEMBER 2026
ENJOY THE REFINEMENT, EASE OF USE AND LOW MAINTENANCE OF THIS GATES BELT-DRIVE URBAN COMMUTER E-BIKE
The SCOTT Passage 10 Belt Wave E-Bike is your ticket to easy, fun, city riding and low-maintenance living. Its frame shape allows for easy mounting and dismounting, while its trim build and sleek design perfectly house the lightweight Bosch Performance SX motor and a removable 400Wh battery. On the road, Passage looks and feels light and agile thanks to its balanced geometry and low center of gravity. The Bosch motor’s narrower design lets you enjoy a natural pedaling style, and when pavement gets rough, the 75mm suspension fork cushions each bump, keeping control smooth and steady.
The Passage's belt drive stays cleaner than a traditional drivetrain, needs no lube, won't snag on clothing, and demands very little upkeep. So, enjoy worry-free E-Biking, and when you're ready to park the bike for the day, just swing out the kickstand. Along with its Wave design, additional practicality is built in: an adjustable stem lets you customize your fit for a relaxed, comfortable posture or a sportier riding position, while an integrated SP connection provides a secure spot for your phone and keeps navigation in view. The rear rack holds up to 20kg, giving you room for groceries and essentials.
🏬 Available exclusively at our store in Ottawa.
🚴 Try before you buy: book your test ride today!
🔧 Professional assembly service available.
SPECIFICATIONS
Please note that bike specifications are subject to change without prior notice.
FRAME
Alloy S-XL=29"
6061 Alloy custom butted tubing
Top extraction battery
TRAVEL
75mm

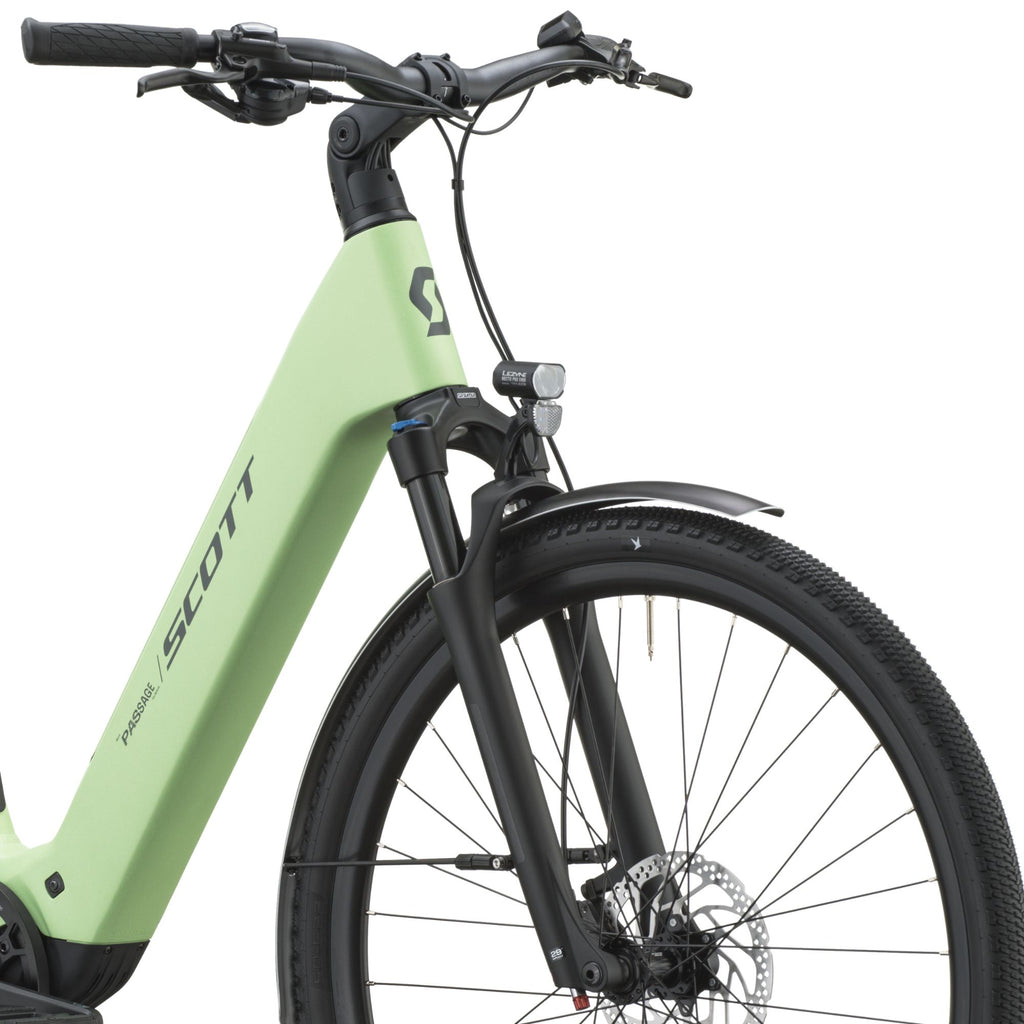

FORK
SR Suntour NRX32 E AIR LO

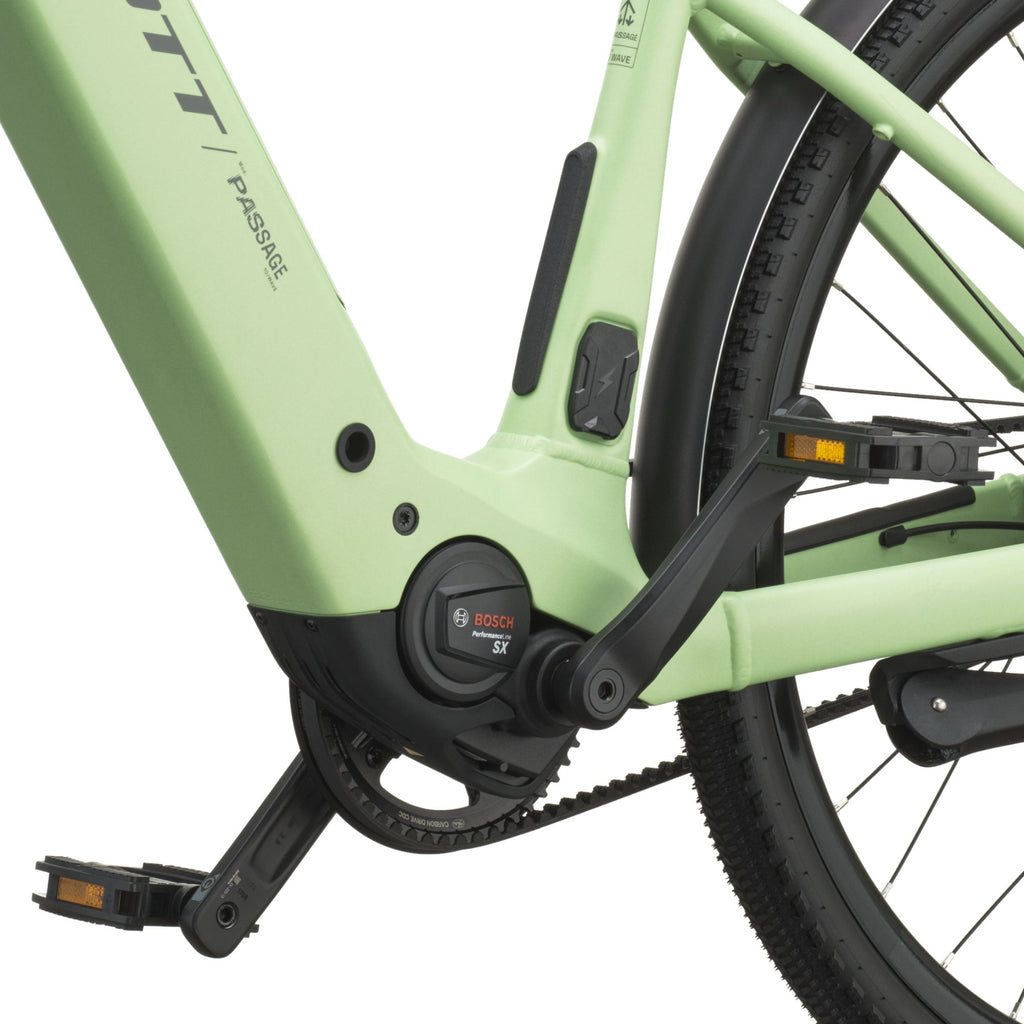

DRIVE UNIT
Bosch Performance Line SX, 60Nm
Maximum motor-assisted speed: 32 km/h (20 mph)
BATTERY
Bosch Compact Tube 400Wh
DISPLAY
Bosch Purion 200
CHARGER
Bosch 2A Charger 230V

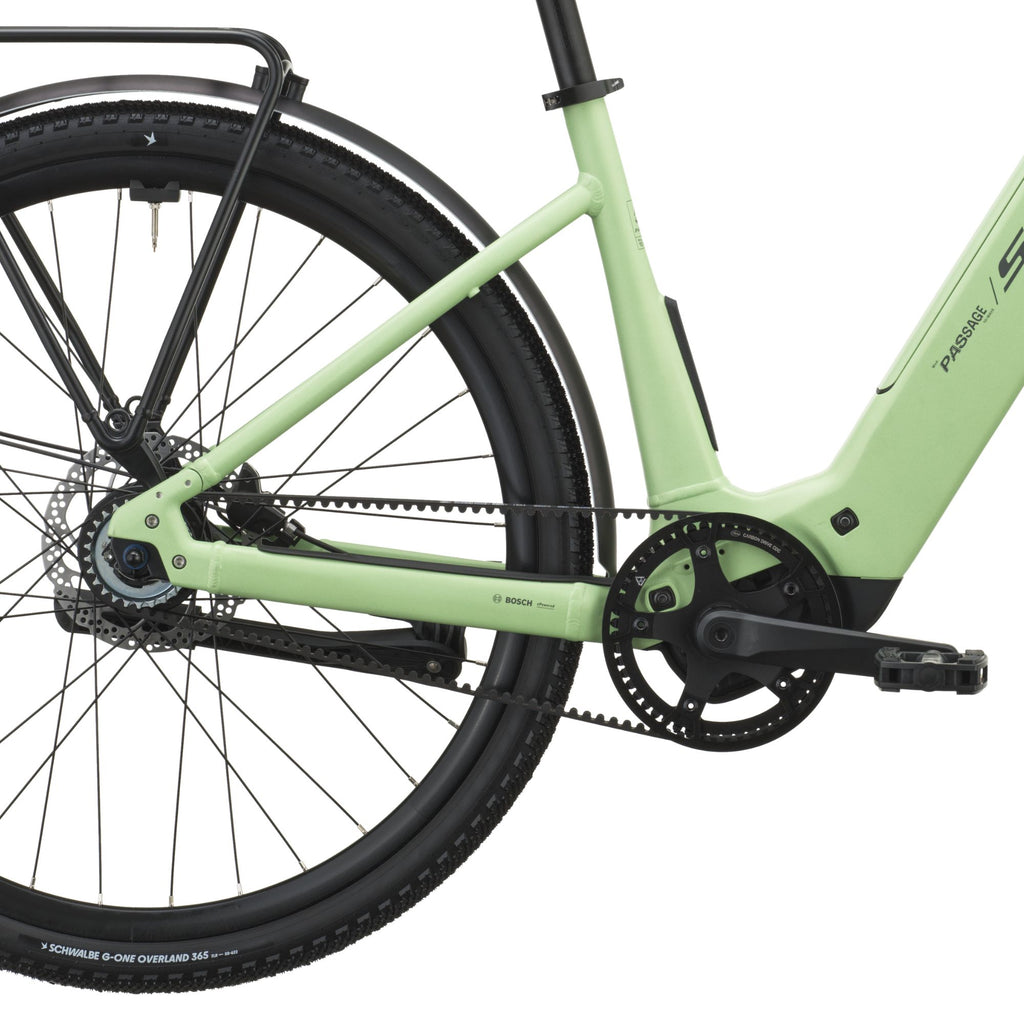

REAR DERAILLEUR
Shimano Nexus 8 Speed Disc
SHIFTERS
Shimano Alfine SL-S503 Rapid Fire Plus
CRANKSET
FSA CK 220 170mm
CHAINRING
Gates CDC 52T w/Guard
CHAIN
Gates CDC 125T
CASSETTE
Gates CDX 26T
BRAKES
Shimano BR-MT201 2-Piston
ROTORS
Front: Shimano SM-RT30 CL, 180mm
Rear: Shimano SM-RT30 CL, 160mm
GRIPS
Urban Comfort

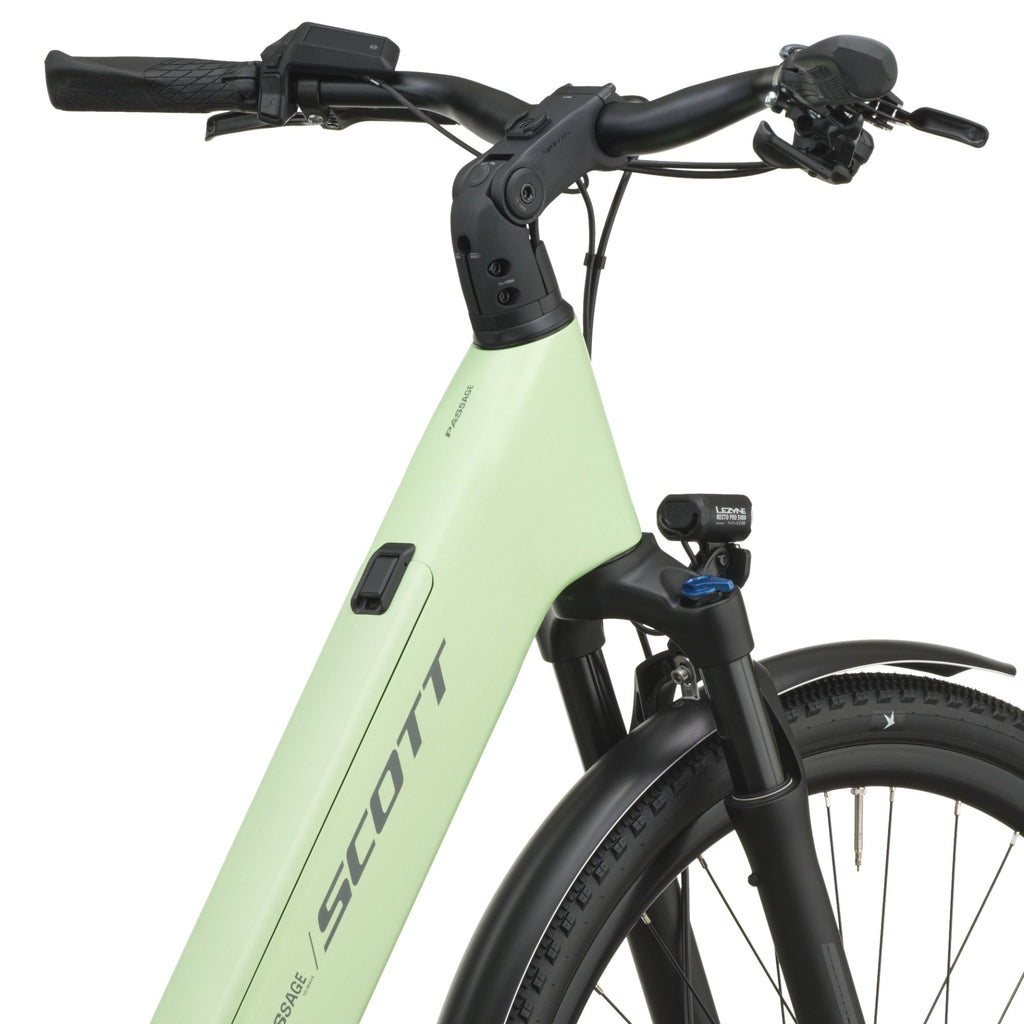

HANDLEBAR
Syncros UC3.0 680mm
Rise 26mm
Backsweep 30°
H'STEM
JD, Adjustable, 31.8*90mm
−10°~+60°
SP Connect

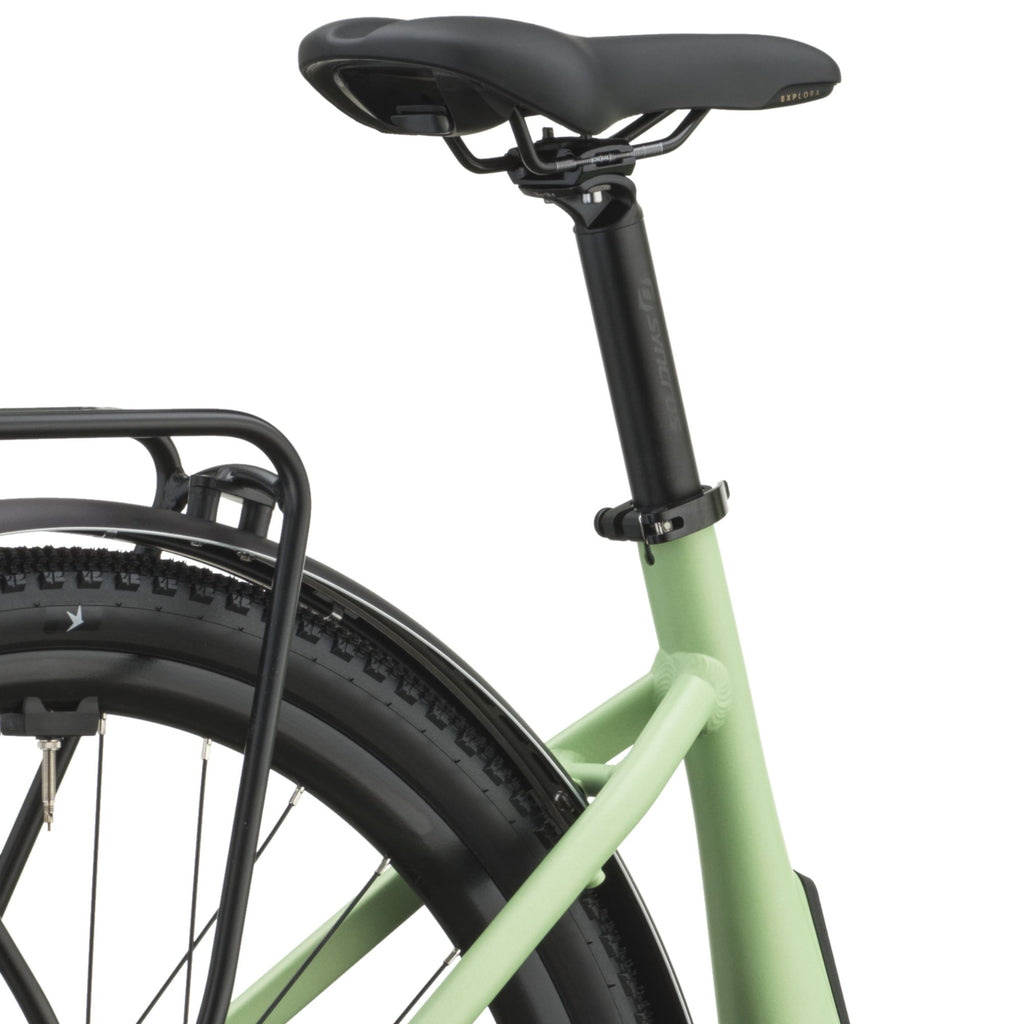

SEATPOST
Syncros M3.0, 31.6mm, 350mm
SEAT
Selle Royal Explora Athletic 155mm
HEADSET
Feimin, 28.8-56-62(39.8/30)
Sealed Bearing
Alloy Cup
FRONT HUB
Shimano HBTC50015B CL, 15x100mm
SPOKES
Stainless Black 13G
RIMS
Front: X15 Disc
Rear: X15 Disc
TIRES
Front: Schwalbe G-One Overland 365 Perf, 700x50C
Rear: Schwalbe G-One Overland 365 Perf, 700x50C
LIGHTS
Front: Hecto Pro STVZO E400
Rear: Supernova TL3Z
RACK
Racktime carrier SNAPIT 2.0 20Kg
FENDERS
Curana C-Lite 55
PEDALS
Marwi SP-827
EXTRAS
Hebie IC Kickstand
WEIGHT
Approx. 22.5kg
Approx 49.6lbs
MAX. SYSTEM WEIGHT
160kg / 353lbs
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
SIZING, GEOMETRY AND DIMENSIONS
Click the image to expand it.
